Creating DebugDiag 2 rule to generate SharePoint 2010-2016 process dump based on ULS Tags and Message
I had previously discussed this topic here but it would not work for ULS tags with 5 digits (SharePoint 2013 and beyond). This post will guide you to create the rule for this particular ULS log entry:
First, download DebugDiag 2 Update 2 or greater. As of the time of this writing it can be downloaded here.
In our proof-of-concept, or case study, we will generate a dump file only and only if the logged message has tag ai108 and contain “load XML” in the message like the row below:
05/04/2016 12:28:50.92 w3wp.exe (0x1C9C) 0x416C SharePoint Foundation Object Cache ai108 Medium Failed on try2 to load XML document at path ‘C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\12\Template\Features\PowerViewStapling\feature.xml’: System.IO.DirectoryNotFoundException: Could not find a part of the path (etc…) |
Steps:
1. Run DebugDiag 2 Collection

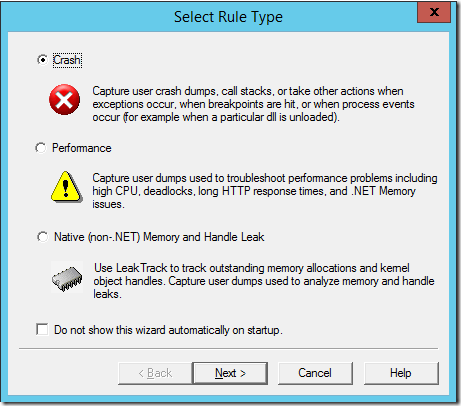

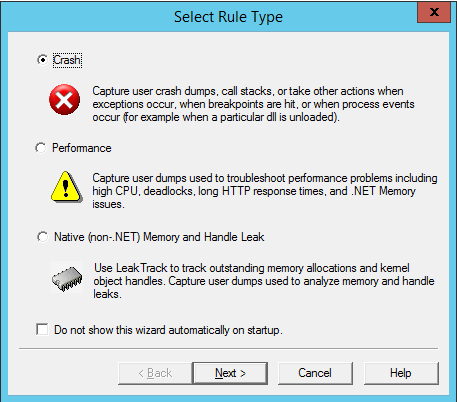

2. Choose crash rule and click Next

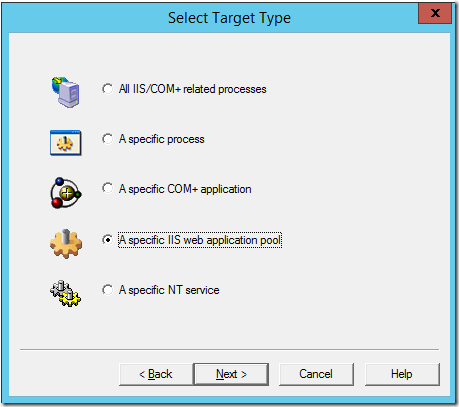

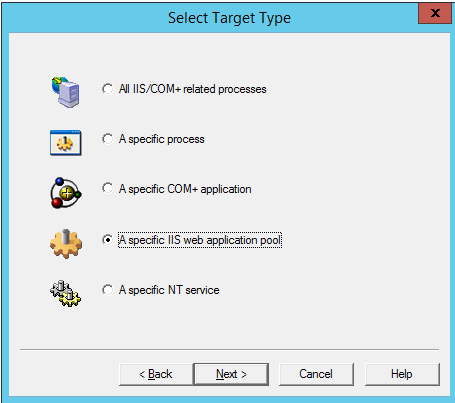

3. As I am capturing dump from a SharePoint web application I will choose “A specific IIS web application pool” and click Next. For Timer Services I would choose a specific NT service and then SharePoint Timer Service.

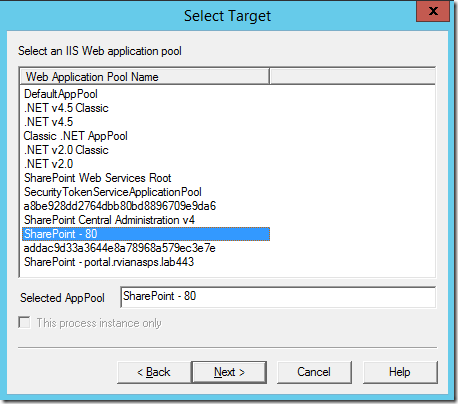

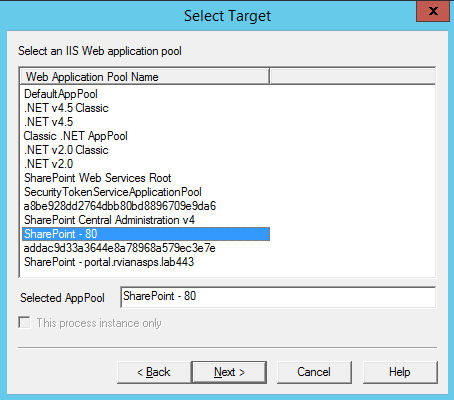

4. Then I will choose the application pool for the web application I want to capture the process dump (you can find the application pool name associated with the in Central Administration / Manage Web Applications) then click Next

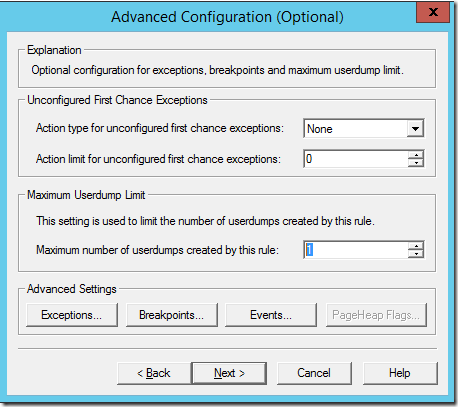

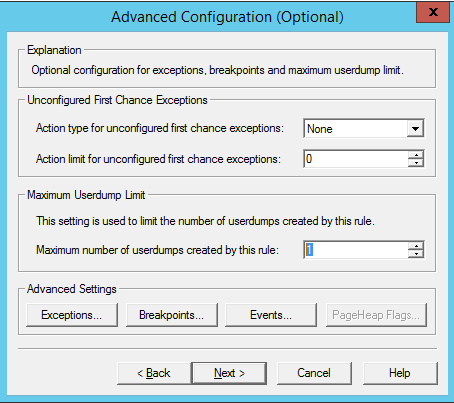

5. On Advanced Configuration, I will limit the number of dumps created by the rule to 1 (for a different requirement it can be a different number)
6. I will then click on the BreakPoints button
7. In configure breakpoint. click Add Breakpoint…

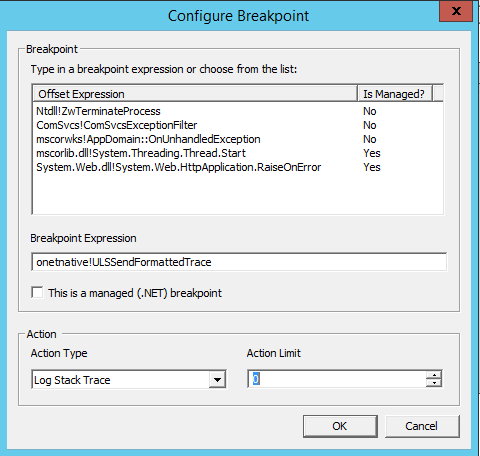

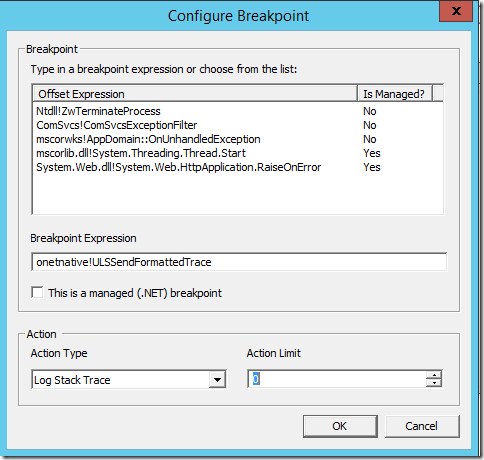

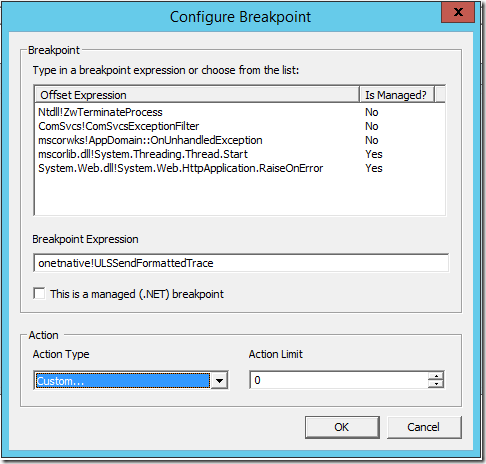

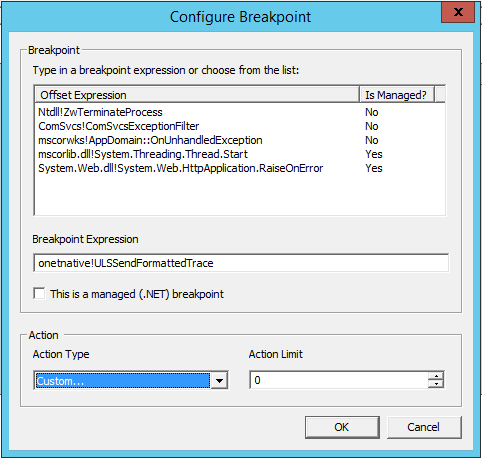

8. Enter onetnative!ULSSendFormattedTrace as Breakpoint Expression and Action Limit to 0 which means no limit:
9. On the Action Type dropdown, choose Custom…
10. Replace the code in the window by this one:
Dim Tag1
Dim TargetTag1
TargetTag1 = "ai108" 'Replace it by your desired ULS Tag
Dim PartialText1
PartialText1 = "load XML" 'Replace it by part of the message in ULS Logs or make it "" for all messages
Tag1 = Debugger.Execute("r @$t1=@ecx;.if (@$t1 >> 18 < 24) { r @$t2=@$t1>>18 & 3f; r @$t3=@$t1>>12 & 3f; r@$t4=@$t1>>0c & 3f; r @$t5=@$t1>>6 & 3f;r @$t6=@$t1 & 3f;.printf ""%C%C%C%C%C"",@@c++(@$t2 > 0x19 ? @$t2 + 0x16 : @$t2+'a'),@@c++(@$t3 > 0x19 ? @$t3 + 0x16 : @$t3+'a'),@@c++(@$t4 > 0x19 ? @$t4 + 0x16 : @$t4+'a'),@@c++(@$t5 > 0x19 ? @$t5 + 0x16 : @$t5+'a'),@@c++(@$t6 > 0x19 ? @$t6 + 0x16 : @$t6+'a');} .else { .printf ""%C%C%C%C"", @$t1>>18,@$t1>>10,@$t1>>8,@$t1; };")
WriteToLog "Tag: " & Tag1 'To avoid DebugDiag log flood comment you may remove this line
' Test if the tag matches
If InStr(Tag1,TargetTag1)>0 Then
'Only fetch message if necessary
Dim Message1
Message1 = ""
If PartialText1 <> "" Then
Message1 = Debugger.Execute(".printf ""%mu"",@r9")
'WriteToLog "Messadge: " & Message1 'Uncomment this line if you wish to log the message
End If
If Message1 = "" Or InStr(Message1,PartialText1) > 0 Then
' You can change the action to log the stack trace for example
CreateDump "For Tag " & Tag1, false
End If
End If

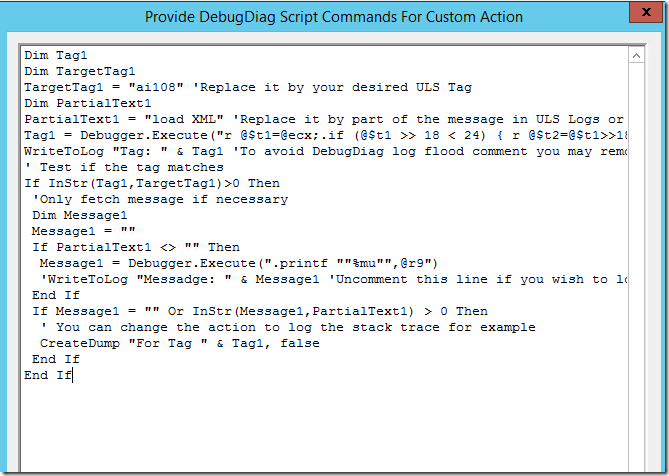

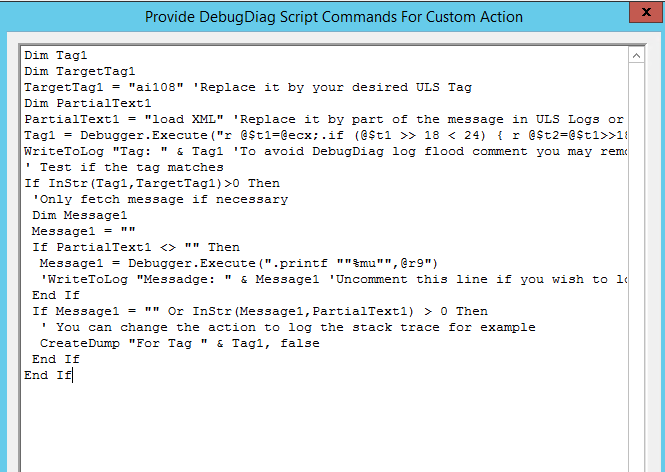

11. If it looks like it, press OK
12 If your window look like this, click Ok

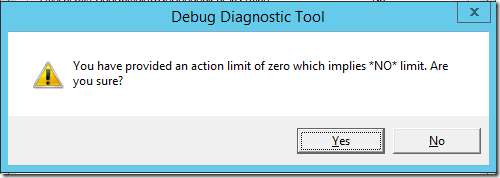

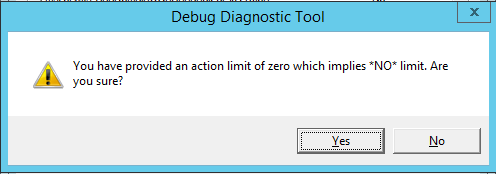

13. Click Yes to this warning
14. Click Add Breakpoint… again

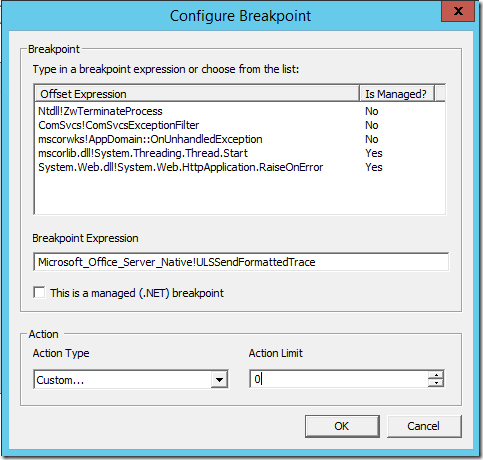

15. Enter Microsoft_Office_Server_Native!ULSSendFormattedTrace as Breakpoint Expression and Action Limit to 0 (no limit).
16. In Action Type dropdown, choose Custom…
17. Replace the code in the window by this one:
Dim Tag2
Dim TargetTag2
TargetTag2 = "ai108" 'Replace it by your desired ULS Tag
Dim PartialText2
PartialText2 = "load XML" 'Replace it by part of the message in ULS Logs or make it "" for all messages
Tag2 = Debugger.Execute("r @$t1=@ecx;.if (@$t1 >> 18 < 24) { r @$t2=@$t1>>18 & 3f; r @$t3=@$t1>>12 & 3f; r@$t4=@$t1>>0c & 3f; r @$t5=@$t1>>6 & 3f;r @$t6=@$t1 & 3f;.printf ""%C%C%C%C%C"",@@c++(@$t2 > 0x19 ? @$t2 + 0x16 : @$t2+'a'),@@c++(@$t3 > 0x19 ? @$t3 + 0x16 : @$t3+'a'),@@c++(@$t4 > 0x19 ? @$t4 + 0x16 : @$t4+'a'),@@c++(@$t5 > 0x19 ? @$t5 + 0x16 : @$t5+'a'),@@c++(@$t6 > 0x19 ? @$t6 + 0x16 : @$t6+'a');} .else { .printf ""%C%C%C%C"", @$t1>>18,@$t1>>10,@$t1>>8,@$t1; };")
WriteToLog "Tag: " & Tag2 'To avoid DebugDiag log flood comment you may remove this line
' Test if the tag matches
If InStr(Tag2,TargetTag2)>0 Then
'Only fetch message if necessary
Dim Message2
Message2 = ""
If PartialText2 <> "" Then
Message2 = Debugger.Execute(".printf ""%mu"",@r9")
'WriteToLog "Messadge: " & Message2 'Uncomment this line if you wish to log the message
End If
If Message2 = "" Or InStr(Message2,PartialText2) > 0 Then
' You can change the action to log the stack trace for example
CreateDump "For Tag " & Tag2, false
End If
End If

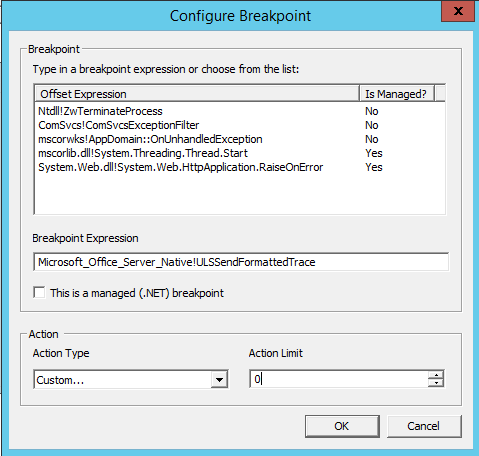

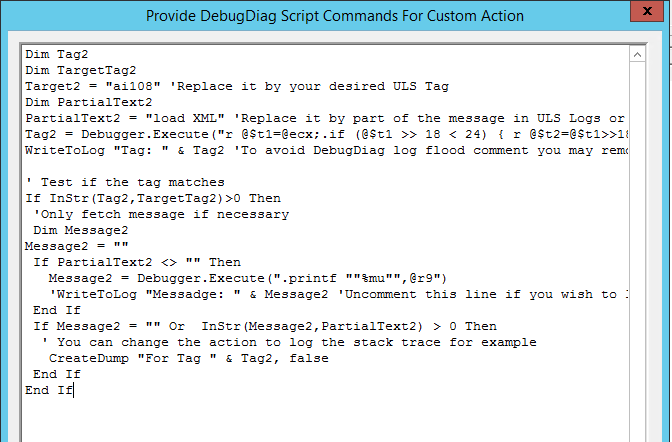

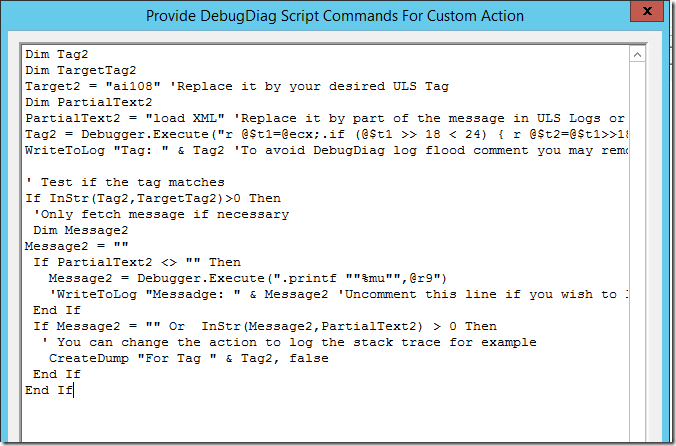

18. If it looks like this you can click OK
19. If things are correct, you should see this:
20. Click Ok
21. Click Yes to the warning

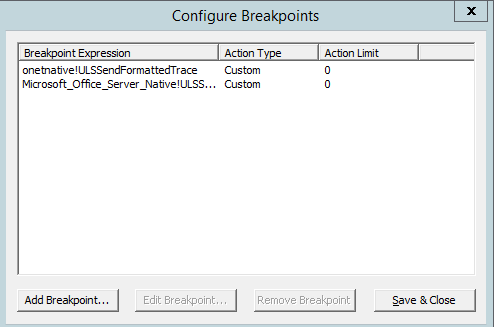

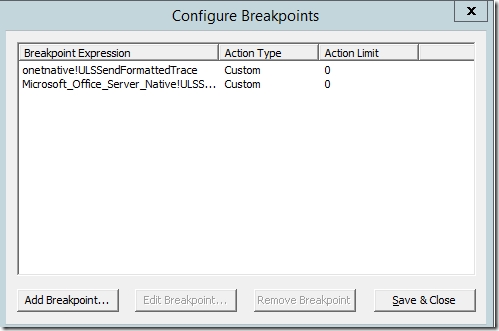

22. If you see this, click Save & Close:
23. If you see this you can click Next (notice that I changed the limit of dumps from 10 to 1):

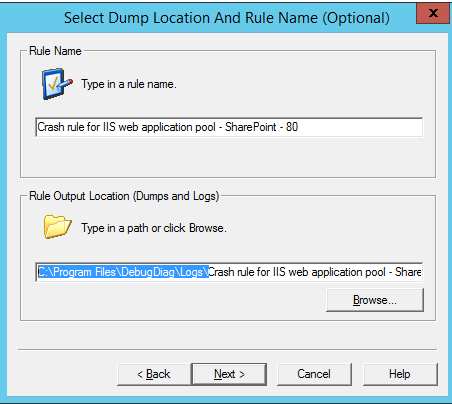

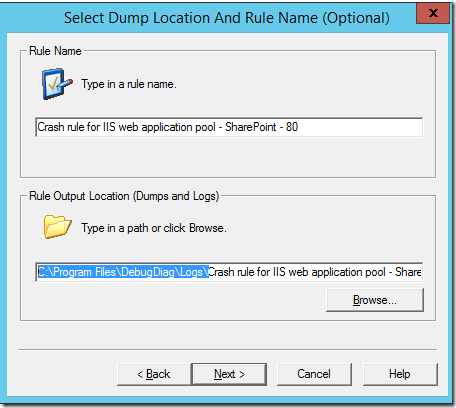

24. By default logs and dumps are saved at C:\Program Files\DebugDiag\Logs\. It is ok to keep the default, but some environments cannot hold big files on disk C:. To change the folder replace C:\Program Files\DebugDiag\Logs\ by your new disk folder (but please let the crash rule subfolder as it is). This is the moment to do so:
25. In my test, I replaced the folder to c:\temp (the folder does not need to exist)

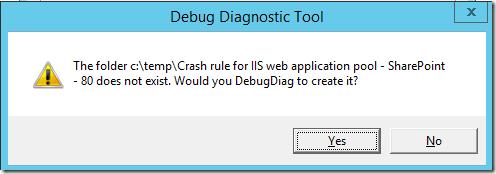

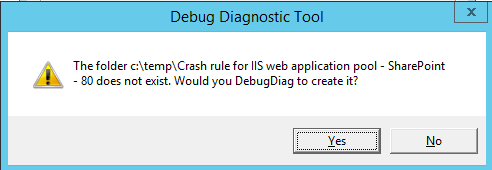

26. You may see this warning if the folder does not exist, just click Yes

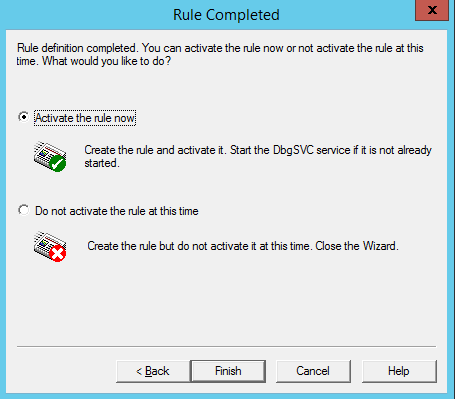

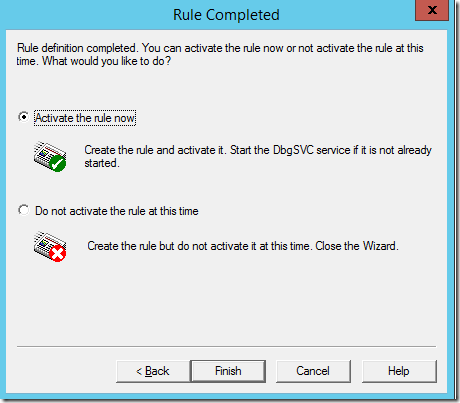

27. You can activate the rule now and click Finish

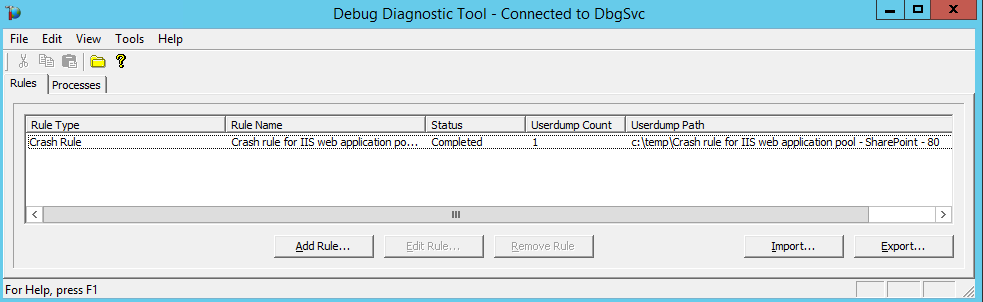

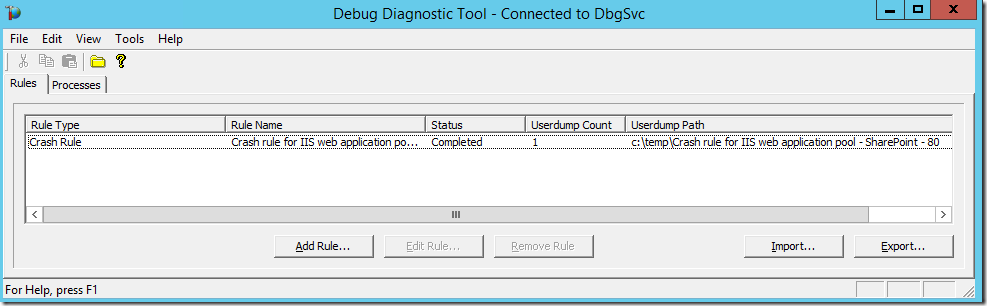

28. Now when it captures 1 dump file it will be marked as complete
Hi,
that is amazing information. Thanks. Could you tell more about the magic 0x19 and 0x16 numbers? What’s the math/logic involved here? I’m trying to create a simple powershell script thet will automate this with cdb.exe (Something like Dump-ProcessOnULS -PID 1234 -EventId ‘qwert’ -Path C:\dumps\qwert.dmp).
My current convertion code is:
function ConvertTag($TagString)
{
$res = 0
if ($TagString.Length -eq 4)
{
$TagString.ToCharArray() | % {
$res = ($res -shl 8) -bor [byte]$_
}
}
elseif ($TagString.Length -eq 5)
{
$TagString.ToCharArray() | % {
if ([char]::IsNumber($_))
{
$res = ($res -shl 6) -bor (([byte]$_ – 0x16) -band 0x3f)
}
elseif ([char]::IsLower($_))
{
$res = ($res -shl 6) -bor (([byte]$_ – [byte][char]’a’) -band 0x3f)
}
else
{
throw ‘invalid tag string’
}
}
}
else
{
throw ‘invalid tag string’
}
return $res
}
Thank you for the post.
Hi Piotr,
Thanks for the feedback. The tags are packed in 6 bytes sets for 5 bytes.
The code below may help you:
internal static int Char2Index(Char Chr)
{
if (Chr >= ‘a’ && Chr = ‘0’ && Chr <= '9')
return 1 + Chr – '0' + ('z' – 'a');
// something went wrong 🙁
return -1;
}
public static uint StrToTag(string StrTag)
{
if (StrTag.Length == 4)
{
long t = (((long)StrTag[0]) << 24) + ((long)StrTag[1] << 16) + ((long)StrTag[2] << 8) + ((long)StrTag[3]);
return (uint)t;
}
if (StrTag.Length == 5)
{
uint sum = 0;
for (int i = 0; i <= 4; i++)
{
sum = sum << 6;
sum += (uint)Char2Index(StrTag[i]);
}
return (uint)sum;
}
return 0; // Something wen wrong 🙁
}
Please publish the script after you finish and put a link here in the comments
ERRATA: 6 bytes pack = 6 bits packs
I think I figured it out.
https://gallery.technet.microsoft.com/SharePoint-2013-Process-b7e2c4c5
The idea is that it’s an array “a..z0..9” and the indexes are being encoded.
Thanks.
Just a quick note: on Office Online Server 2016 attach to uls_native!ULSSendFormattedTrace
Just a heads up I had to change this for both breakpoints: PartialText2 = “load XML”
To this: PartialText2 = “”
